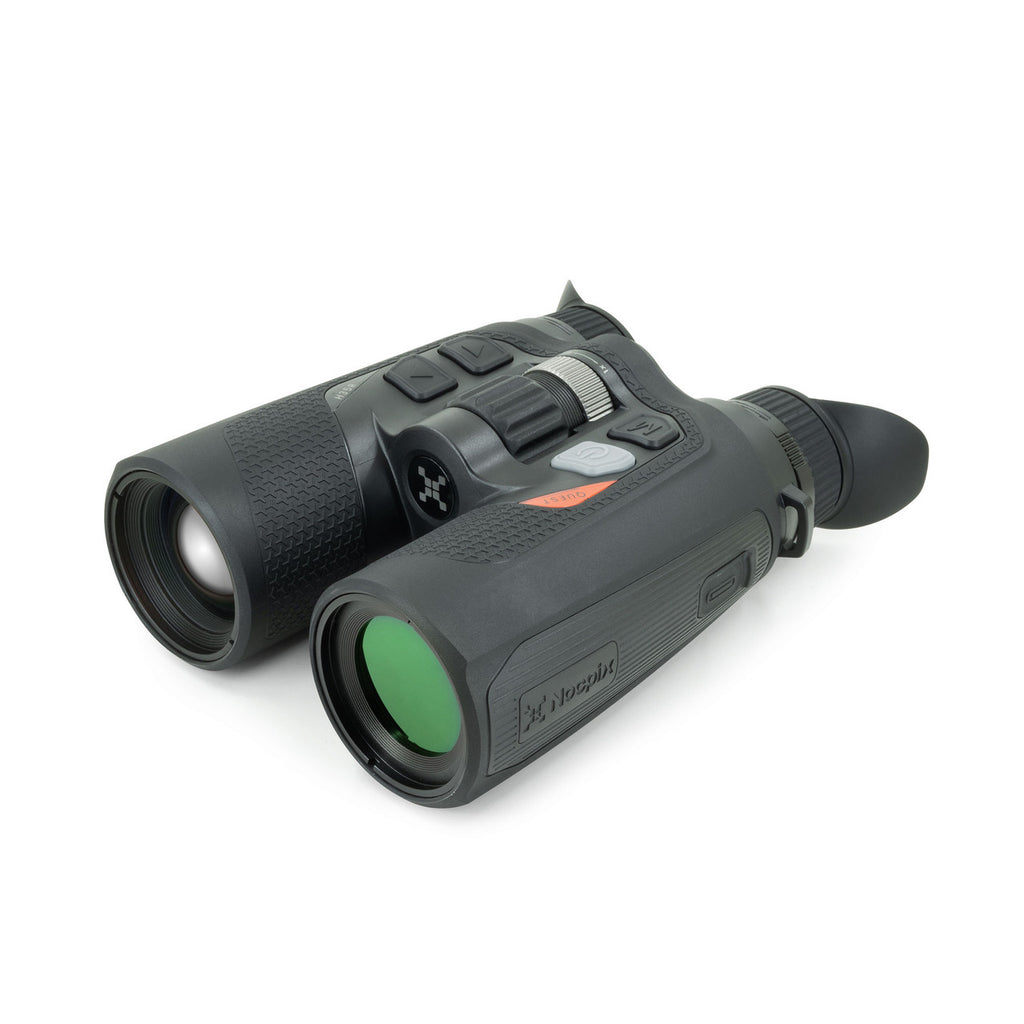

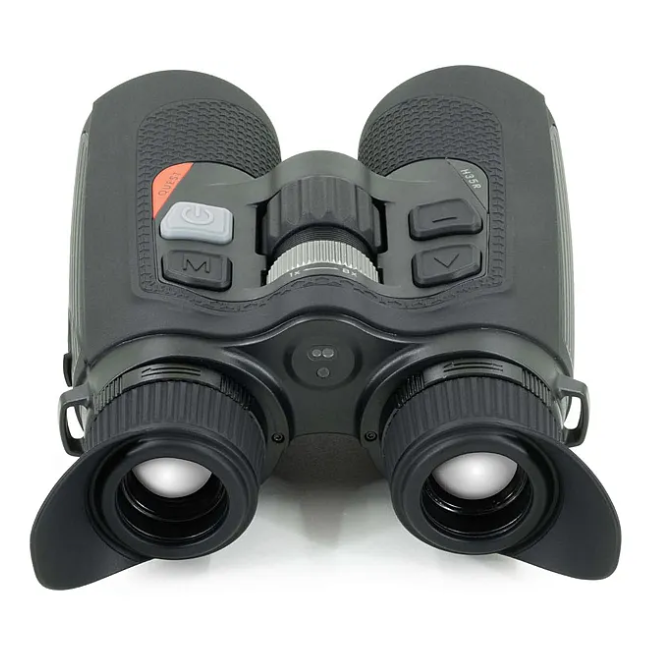

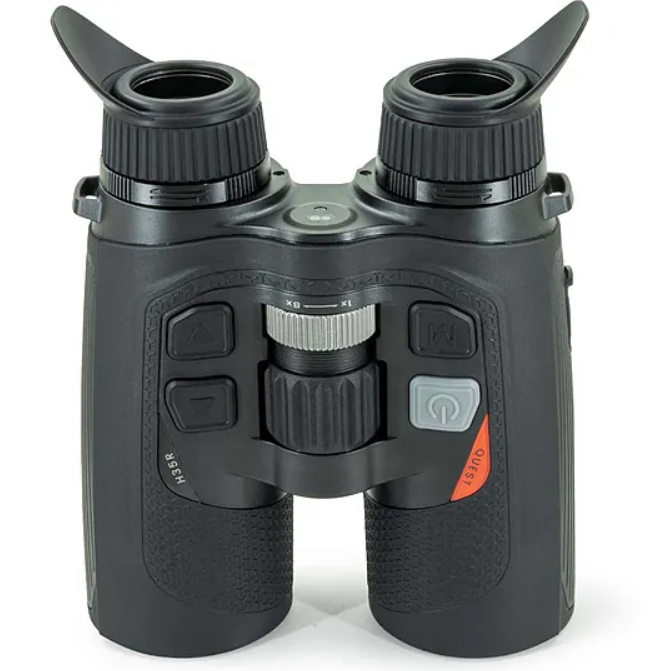

Nocpix QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm


Price:
Sale price$3,299.00

Description




All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning - providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 ?m ?15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920x1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.





QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.

















  • Optics



    Objective Focal Length

    35mm



    Detection Range

    1970 Yards



    Digital Magnification

    8X



    Vertical Angular Field of View

    10°



    Horizontal Angular Field of View

    12.5°



    Objective Lens Material

    Germanium



    Optical Magnification

    3X



    Objective F#

    0.9



    Objective Diameter

    35mm



    Display Type

    AMOLED



    Eye Relief

    25mm



    Diopter Range

    -5 to +5



    Focusing Mechanism

    Manual Focus



    Display Resolution

    1920x1200










  • Features & Performance



    Warranty

    5 Years



    Startup Time

    <10 Seconds, Instant from Standby



    Rangefinder

    Integrated 1000 yd LRF



    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian



    Picture-in-Picture

    Yes



    Storage Capacity

    64GB



    Connector Output

    Power/Data



    User-Updatable Firmware

    Yes



    Mobile App

    Yes



    Run Time

    5+



    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack



    Stand-by Mode

    Yes



    Connector Type

    USB-C



    External Power Source

    USB-C



    Country of Manufacture

    China



    Wifi

    Yes



    Onboard Recording

    Yes



    Image Capture

    Yes



    Video Output

    Yes










  • Environmental Specifications



    Operating Temperature Range

    -4°F~122°F



    Ingress Protection

    IP67










  • Physical



    Housing Material

    Polymer



    Weight

    24.69



    Height

    2.60



    Width

    5.43



    Length

    6.91










  • Sensor Specifications



    Sensor Type

    Nocpix 640



    Device Technology

    Thermal Imaging



    Sensor Resolution

    640×512



    Sensor Pixel Size

    12?m



    Thermal Sensitivity

    <15mk



    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic



    Sensor Frame Rate

    60hz
