Description
Thermal sensor 640x512
NETD, mK ? 15
Frame rate, Hz 60
Objective lens, mm 50 F 0.9
Field of view(H×V), °/m@100m 8.8x7.0 /15×12
Magnification, × 3~24
Ocular zoom, × 1~3
Detective range, m(Target size:1.7m×0.5m, P(n)=99%) 2600
Exit relief, mm 50
Exit pupil diameter, mm 8
Diopter, D -5~5
Type 1.03inch AMOLED
Resolution 2560x2560
Battery Built-in 4000mAh & 18650 battery
Max. operation time, (t=22?)h 7
LRF ranging distance, NO LRF
Ballistic calculation NO
Photo & Video & Audio recording Yes
Memory capacity, GB 64
WIFI & APP Yes
Weight, g(with battery) 1090
Dimension, mm 365x90x68
Enhanced Clarity with Larger Lens
The ACE series feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.
Long-Distance Detection at Ease
The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.
Reality+ Imaging Enhancement
Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.
New Vision+ System with Ocular Zoom
The new Vision+ system features a 1.03-inch, round, 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.
Agile and Precise Built-in LRF
The ACE is equipped with an integrated LRF, offering laser range-finding up to 1200 meters with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.

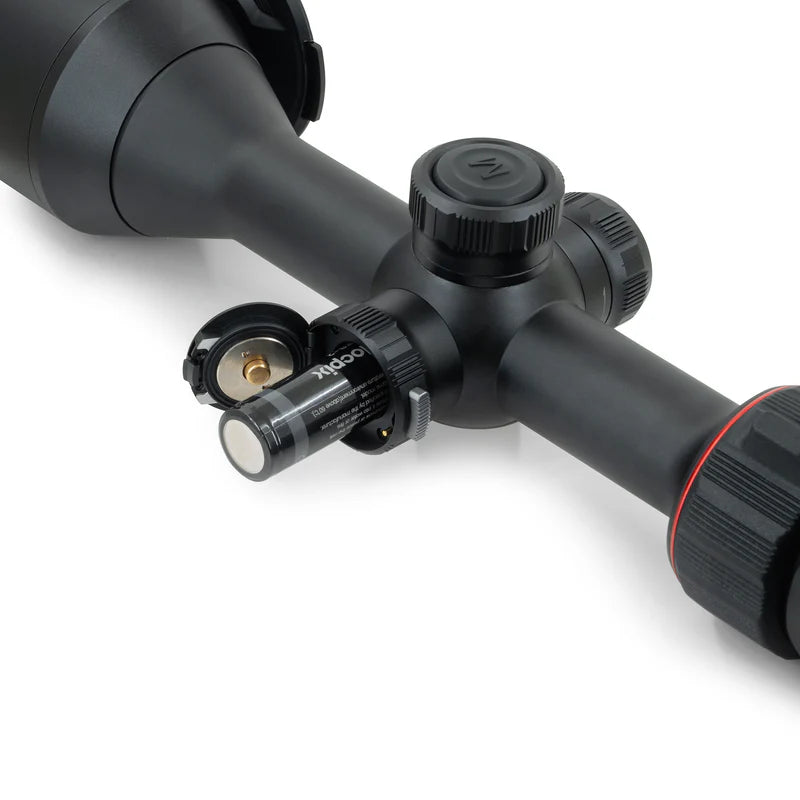

Eliminate Battery Capacity Concerns
The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.
Designed for Hunting and Shooting
The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable.
Outdoor-Friendly Design
The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.
Rigorous Testing & High-durability
Crafted from high-strength aluminum alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.
